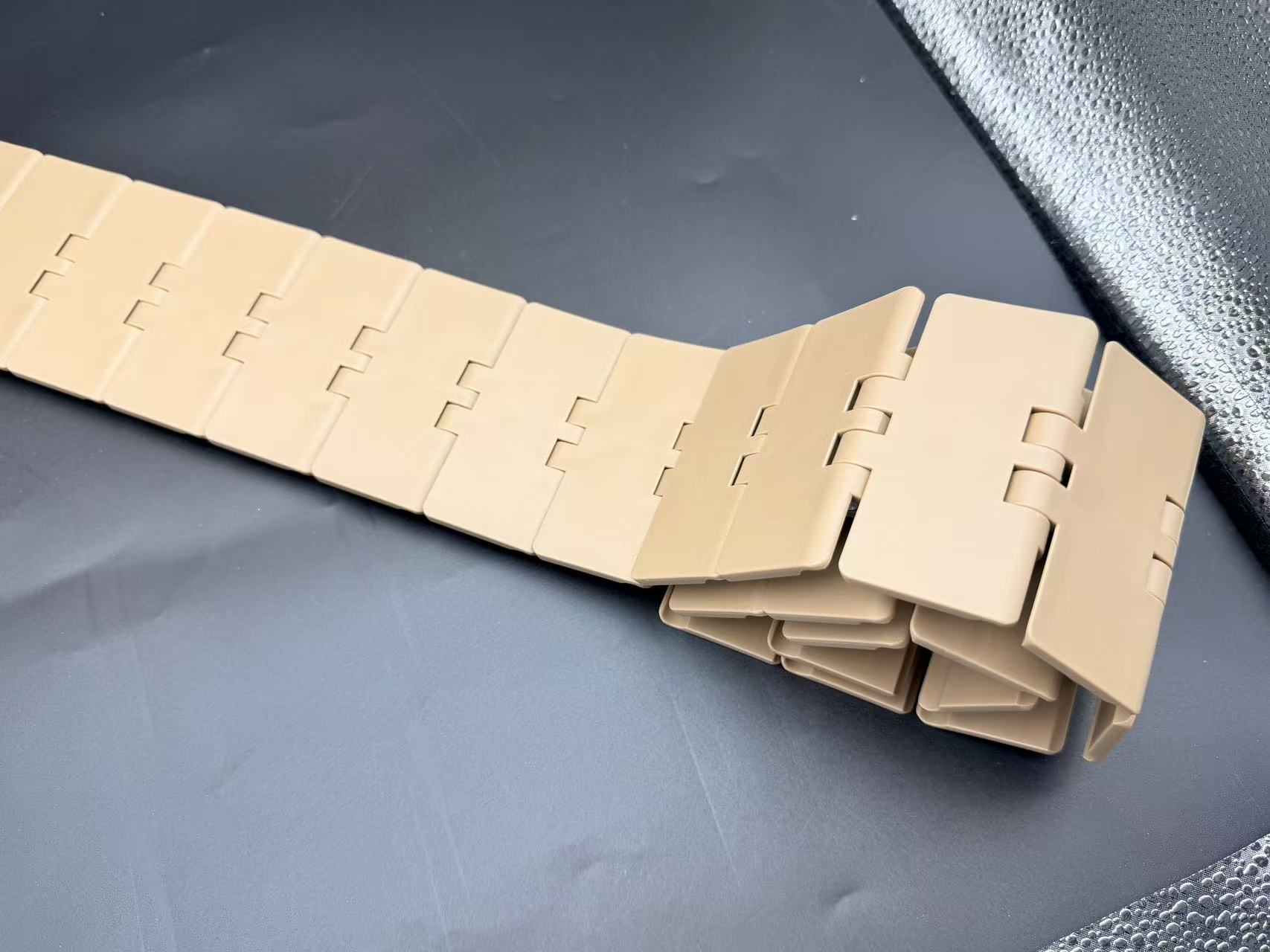

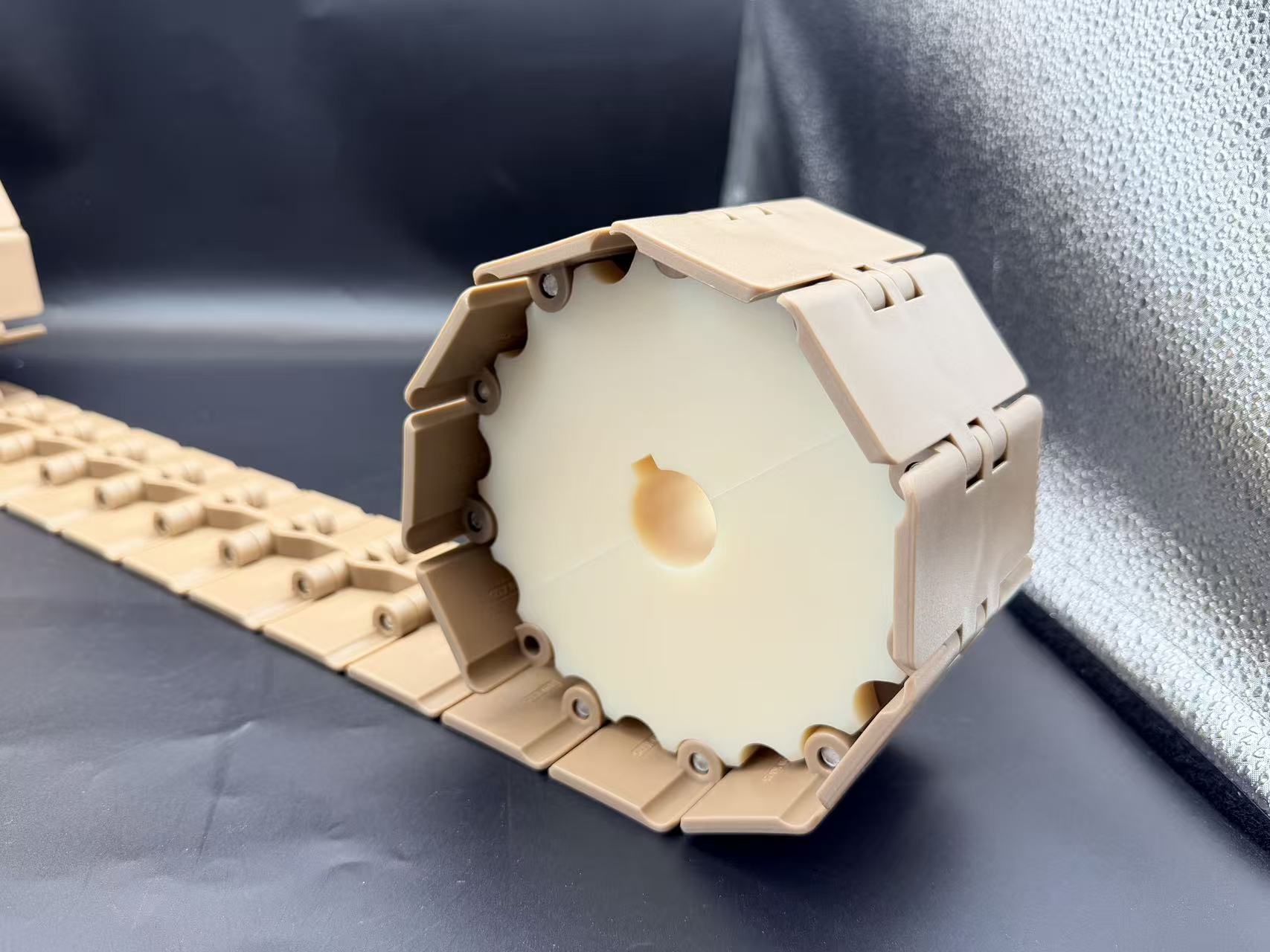

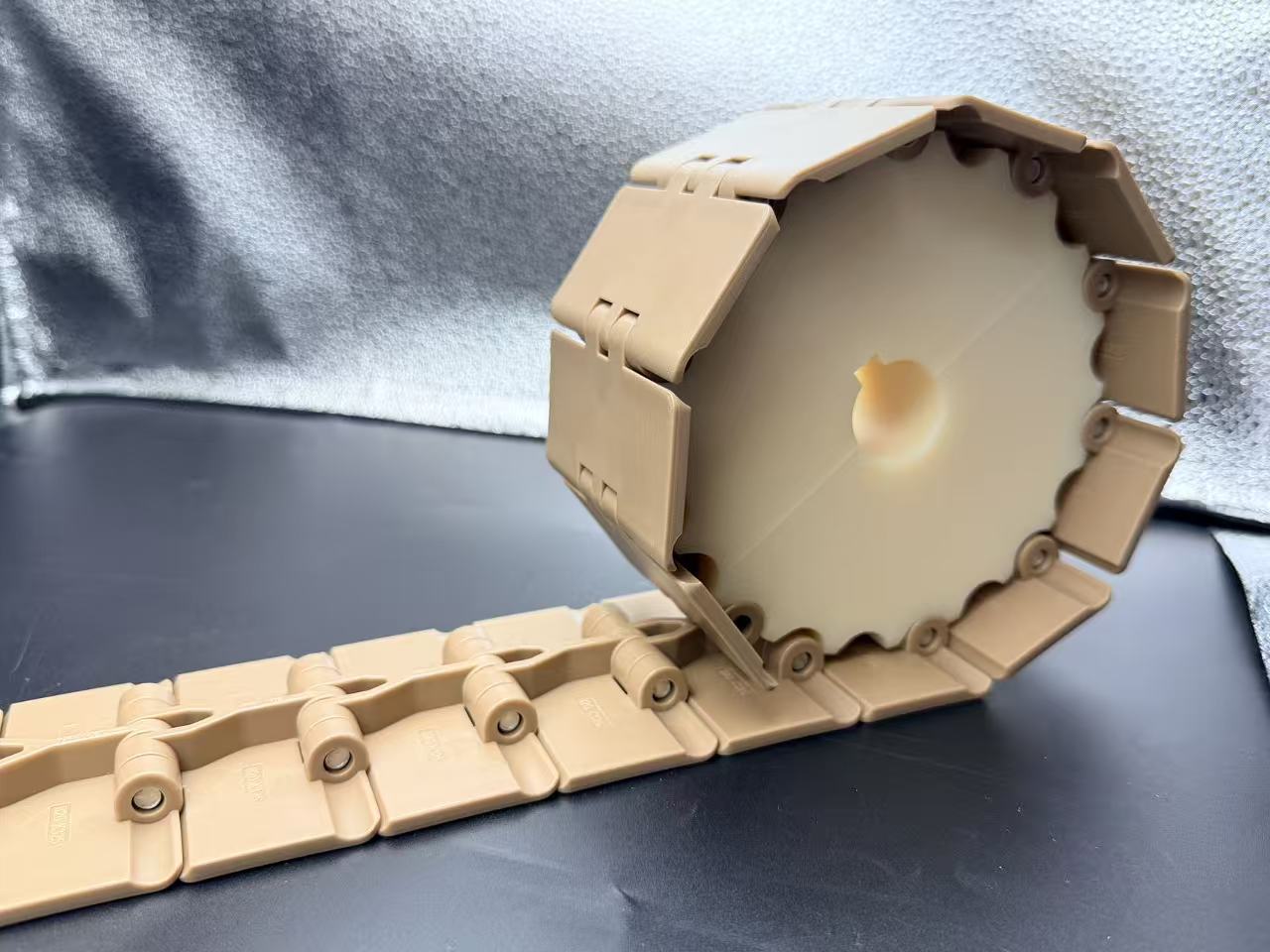

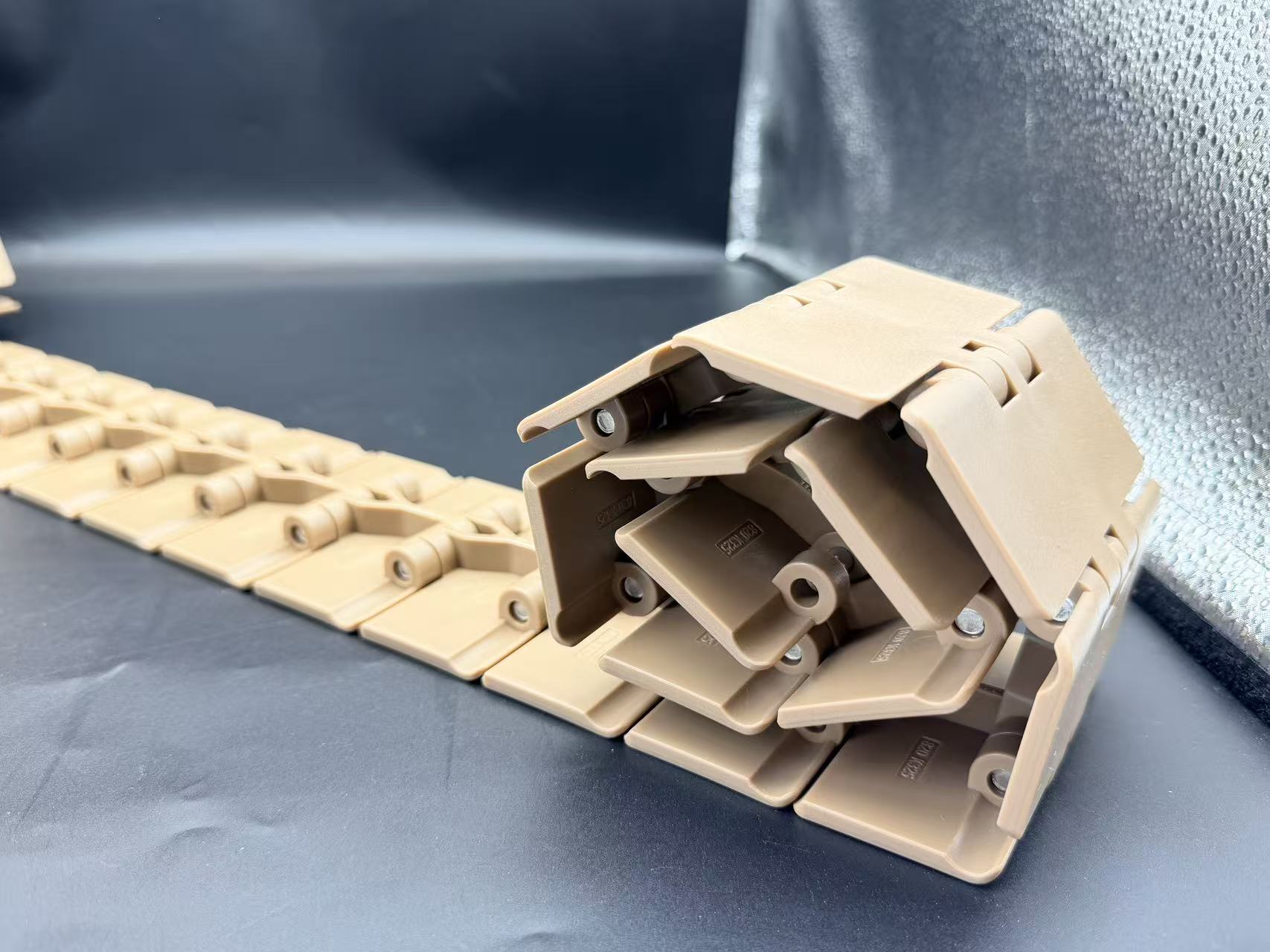

Flat top chain T820/K325/K350/K400/K450/600/K750
Flat top chain T820/K325/K350/K400/K450/600/K750
Multiple width options available to accommodate products of various sizes.
Suitable for conveying all kinds of food, beverages, PET bottles, aluminum cans and various other containers.
Constructed from POM material in coffee brown color, operating temperature range: -40°C to +90°C.
Pin shaft material: cold-rolled austenitic stainless steel.
Running speed: 80 m/min with lubricant; 50 m/min for dry operation.
Working load (at 21°C): 1230 N; maximum conveying length: 12 m.
Product Brief
- Multiple width options available to accommodate products of various sizes.
- Suitable for conveying all kinds of food, beverages, PET bottles, aluminum cans and various other containers.
- Constructed from POM material in coffee brown color, operating temperature range: -40°C to +90°C.
- Pin shaft material: cold-rolled austenitic stainless steel.
- Running speed: 80 m/min with lubricant; 50 m/min for dry operation.
- Working load (at 21°C): 1230 N; maximum conveying length: 12 m.
Other material options including POK, antistatic PP are available to meet diverse application environments, such as acid & alkali resistance and ultra-high wear resistance.

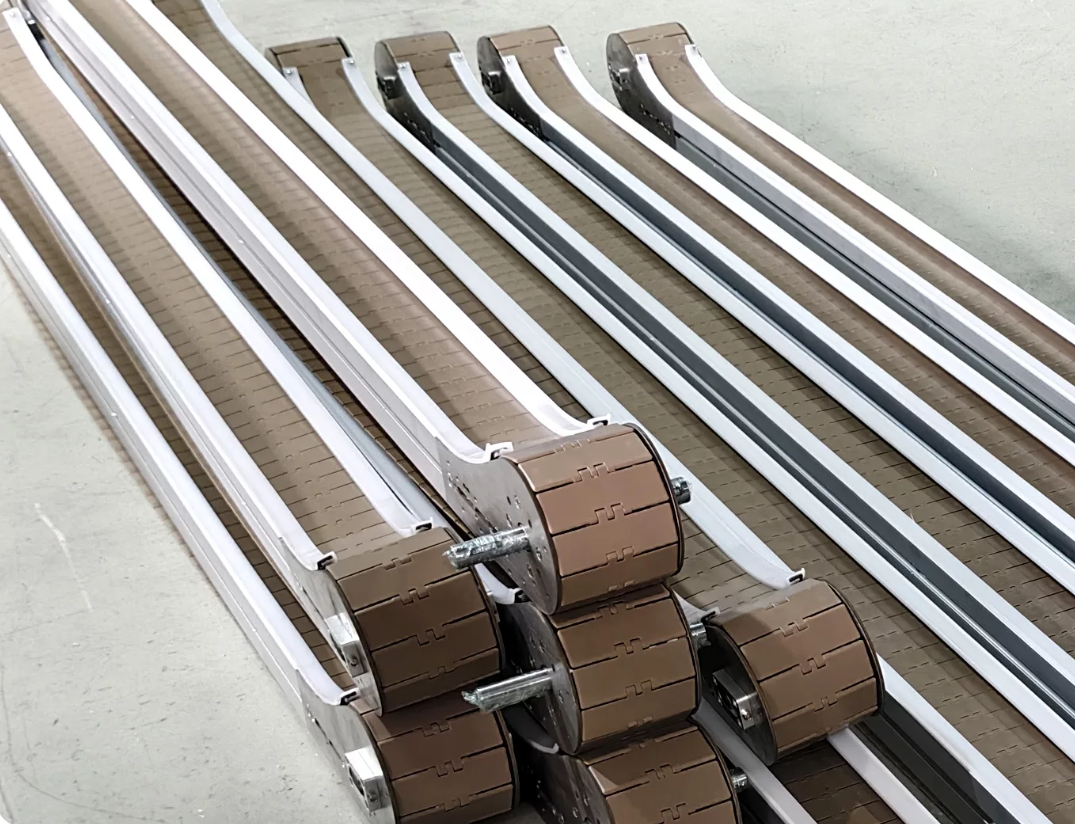

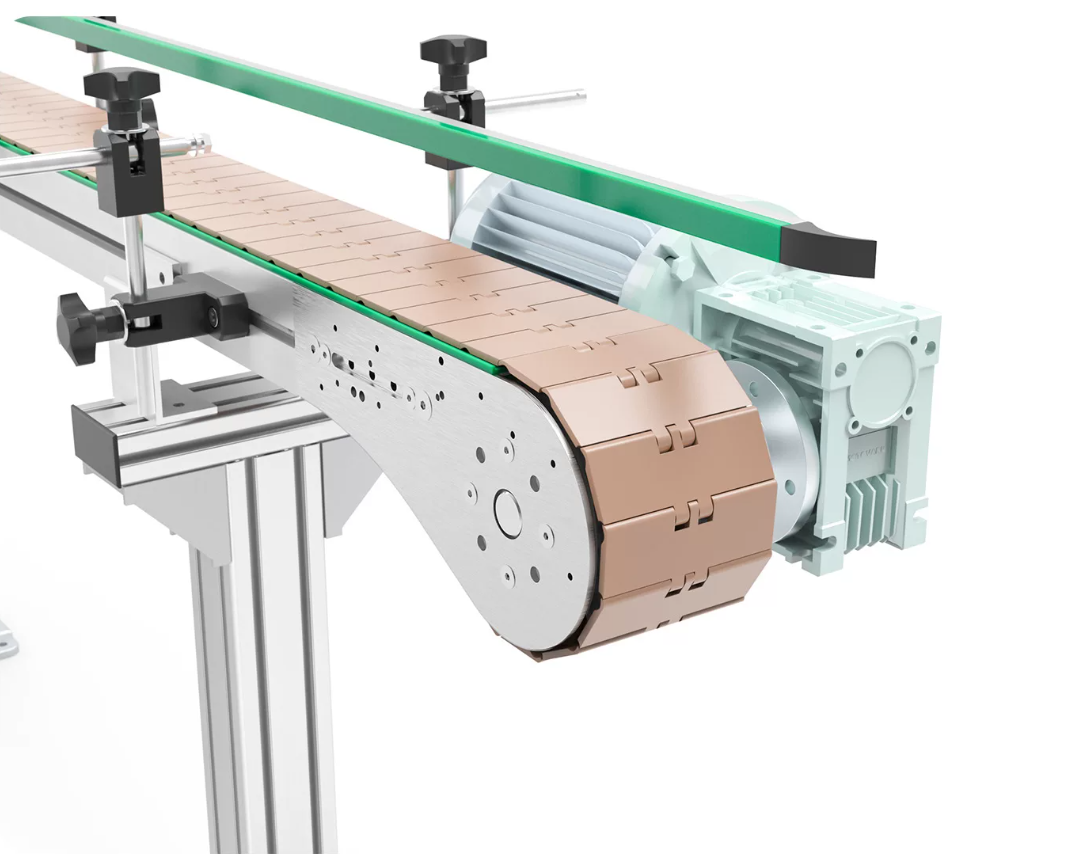

Adopt innovative aluminum alloy structures for quick assembly and cost reduction.
Provide one-stop design guidance and One-stop Purchasing Solution.

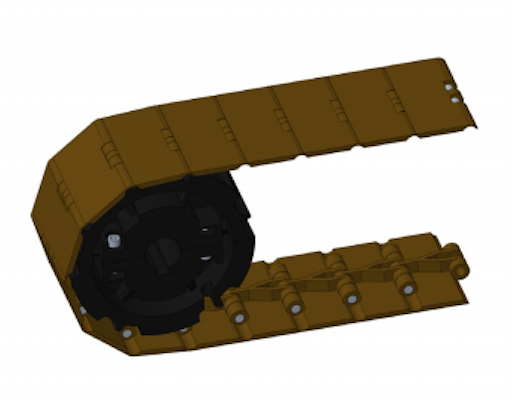

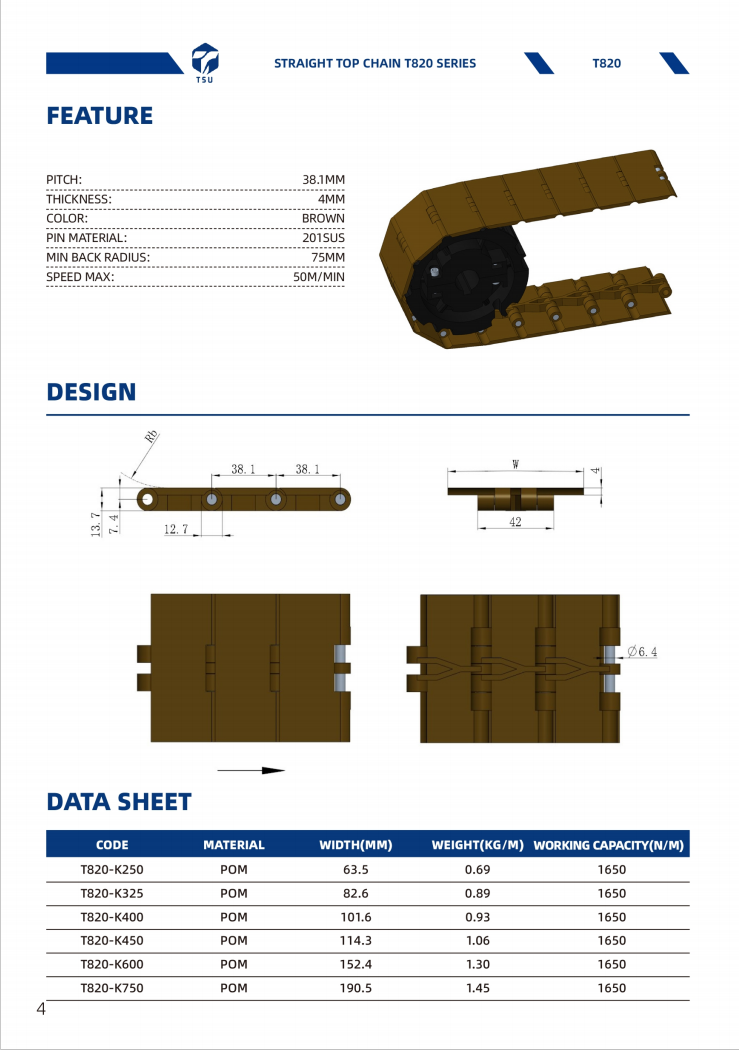

FEATURE
| ITEM | SPECIFICATION |
|---|---|
| PITCH | 38.1MM |
| THICKNESS | 4MM |
| COLOR | BROWN |
| PIN MATERIAL | 201SUS |
| MIN BACK RADIUS | 75MM |
| SPEED MAX | 50M/MIN |

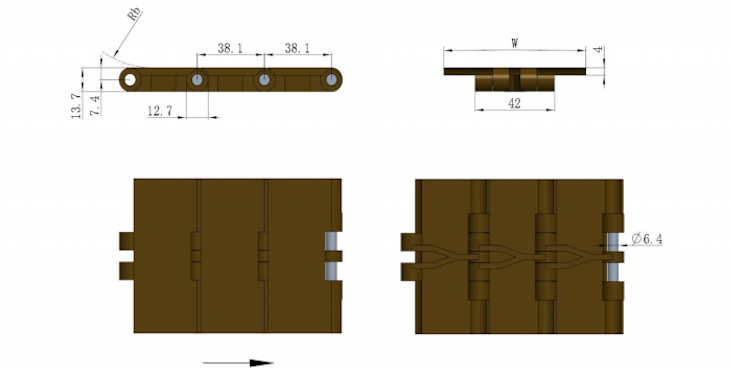

DESIGN
DATA SHEET
| CODE | MATERIAL | WIDTH(MM) | WEIGHT(KG/M) | WORKING CAPACITY(N/M) |
|---|---|---|---|---|
| T820-K250 | POM | 63.5 | 0.69 | 1650 |
| T820-K325 | POM | 82.6 | 0.89 | 1650 |
| T820-K400 | POM | 101.6 | 0.93 | 1650 |
| T820-K450 | POM | 114.3 | 1.06 | 1650 |
| T820-K600 | POM | 152.4 | 1.30 | 1650 |
| T820-K750 | POM | 190.5 | 1.45 | 1650 |
