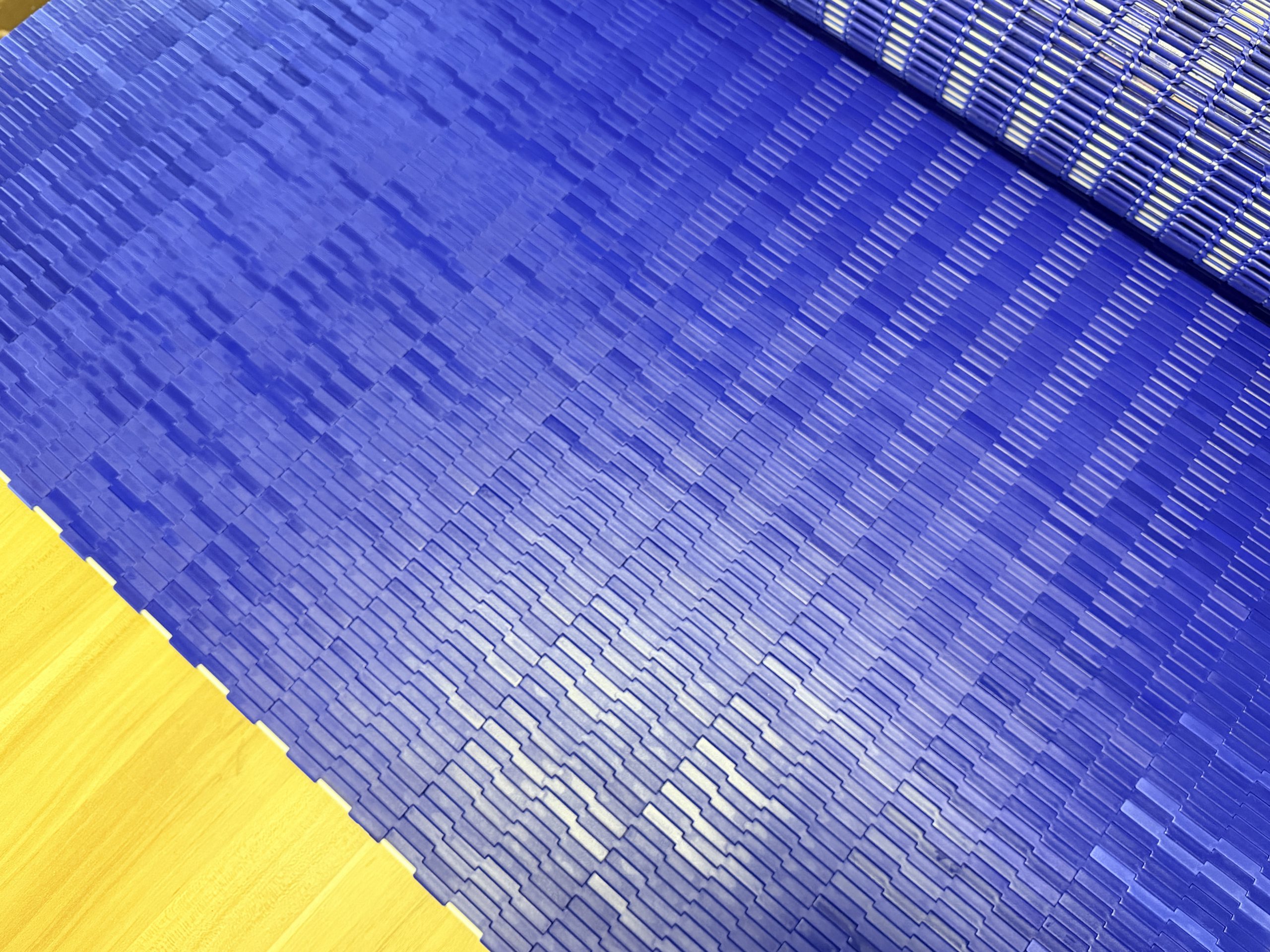

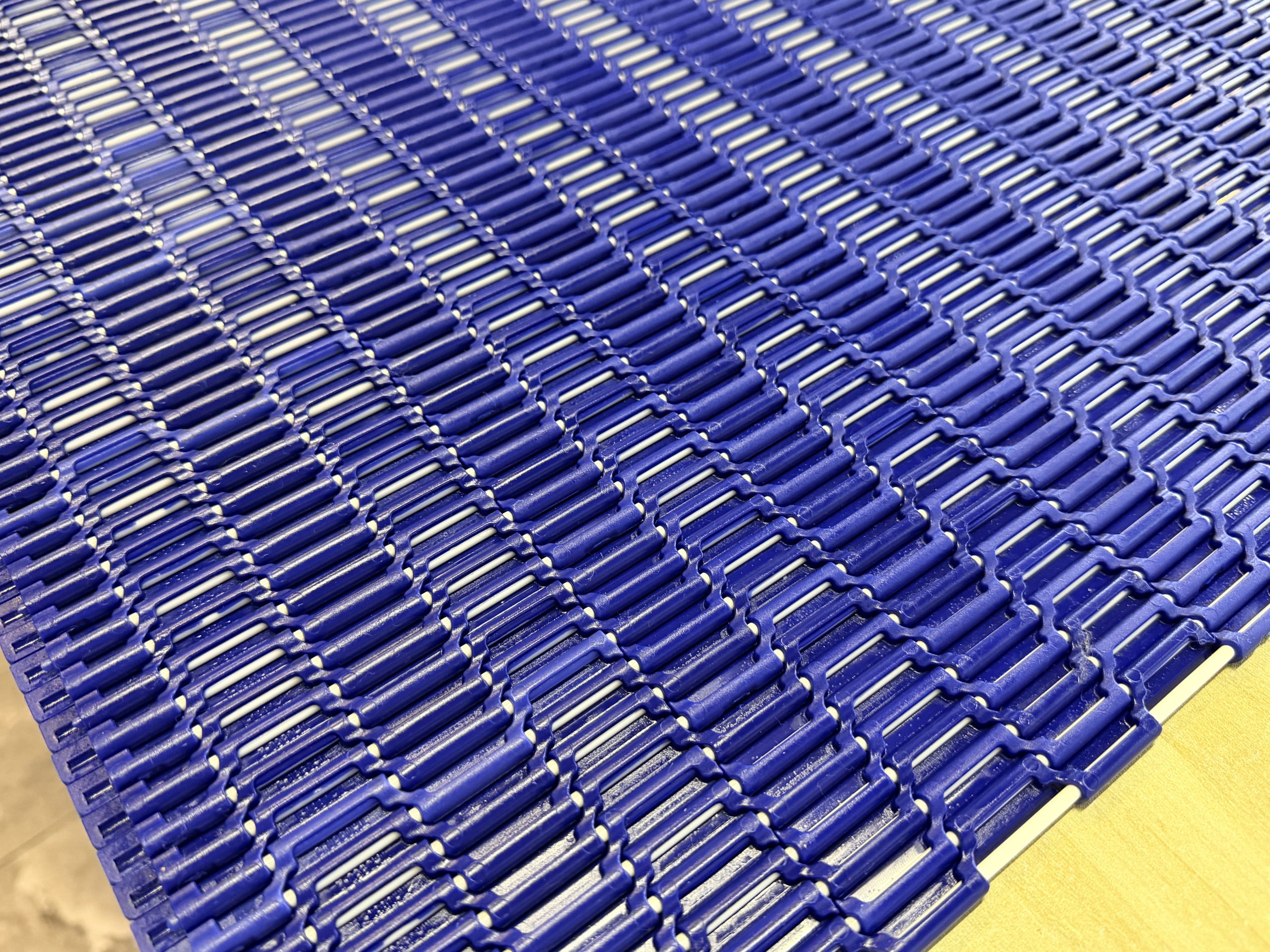

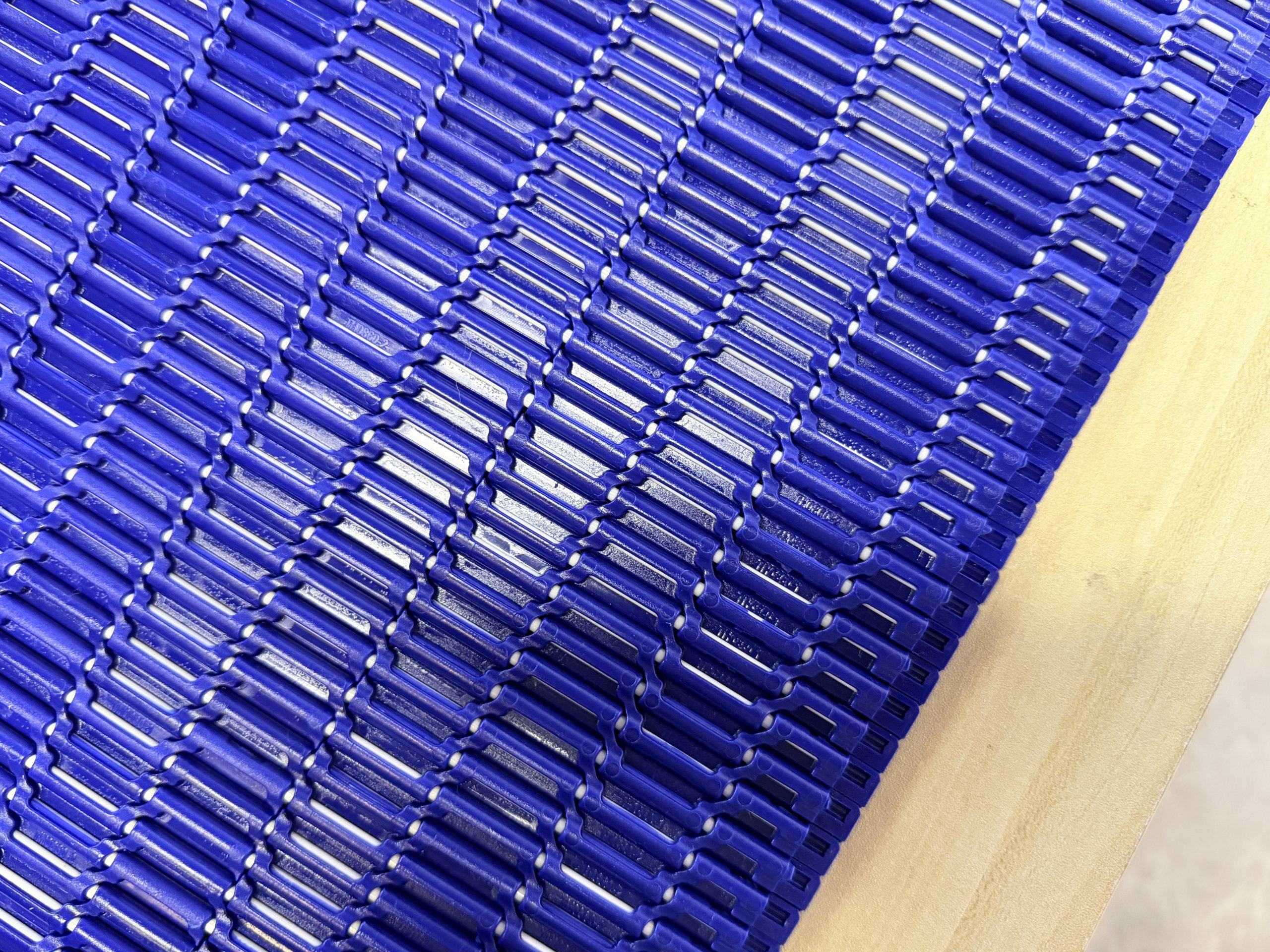

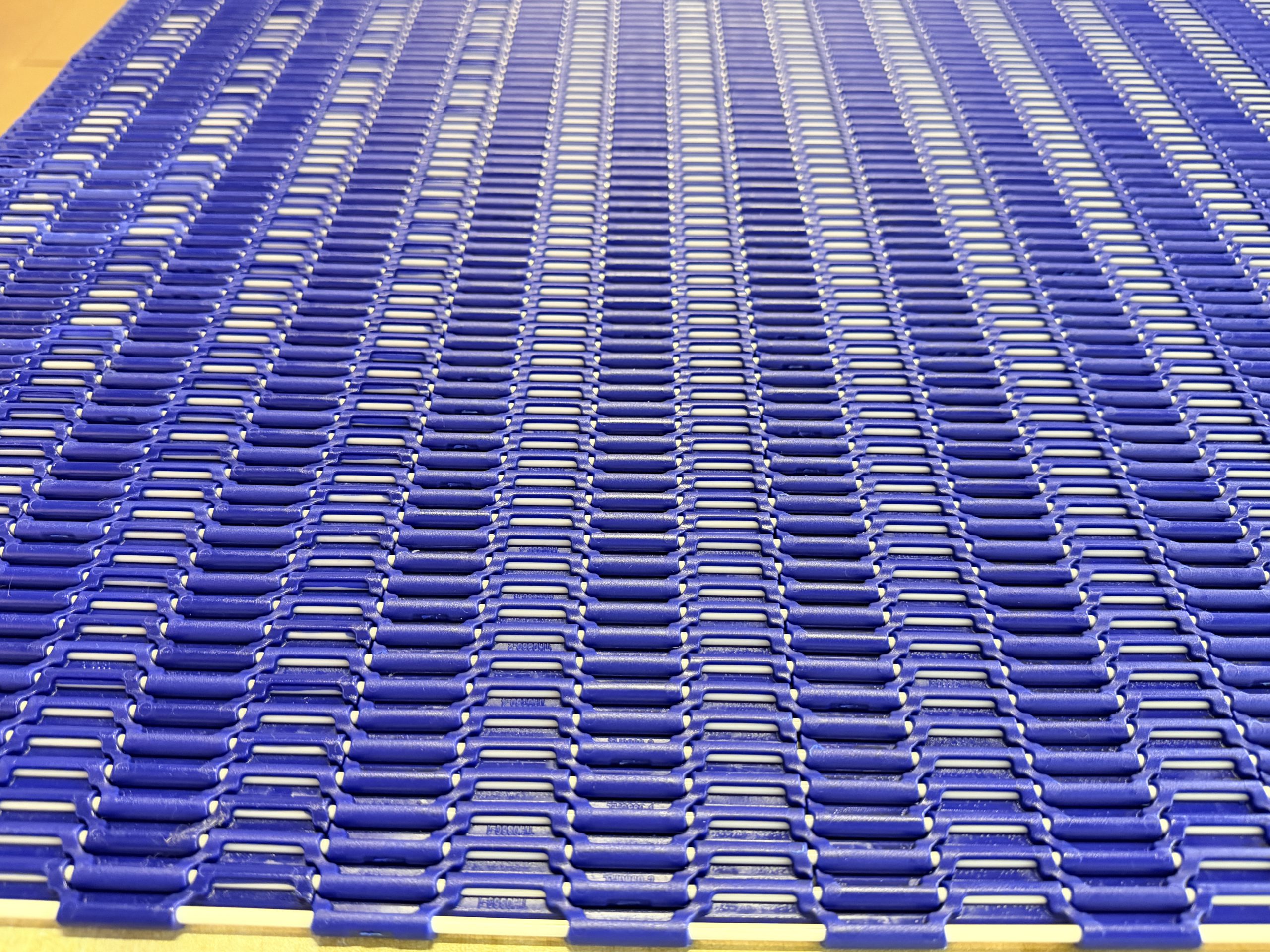

TH0860 Flat Top Modular Belt
TH0860 Flat Top Modular Belt
Flat top plastic modular belt for product conveying, easy system maintenance, and matched sprocket operation.
Product Overview
Multiple width options available to accommodate products of various sizes.
Suitable for conveying all kinds of food, beverages, PET bottles, aluminum cans and various other containers.
Constructed from POM material in coffee brown color, operating temperature range: -40°C to +90°C.
Pin shaft material: cold-rolled austenitic stainless steel.
Running speed: 80 m/min with lubricant; 50 m/min for dry operation.
Working load (at 21°C): 1230 N; maximum conveying length: 12 m.
Product Introduction
Other material options including POK, antistatic PP are available to meet diverse application environments, such as acid & alkali resistance and ultra-high wear resistance.
Adopt innovative aluminum alloy structures for quick assembly and cost reduction.
Provide one-stop design guidance and One-stop Purchasing Solution.
